Briquetting plants are able to compact wood sawdust and almost any fine biomass materials at <14% moisture into high density round briquettes 60mm or 90mm in diameter ideally suited for gasification and combustion with output from 0.5-0.75 to 3-4.5 ton per hour.
Briquetting plant consists of the following equipment:
- One or two silo bins each 25 m3 in capacity with upper charge port, level switches, bottom rotating auger and from one to three discharge ports.
- From one to three inclined metering screw conveyors with VFD connected to each silo bin discharge ports which feed the material into briquetting presses.

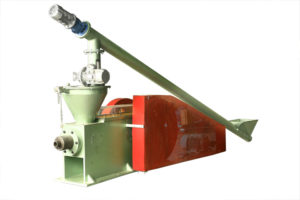

- From one to three mechanical briquetting presses with specifications as shown in the table below connected each to metering screw conveyor.
- Briquette cooling line connected to each briquetting press which deliver finished briquettes into briquette storage area.
Briquetting Press Specifications
|
Briquette Diameter, mm
|
Capacity ᵃ⁾, kg/h
|
Power consumption, kWh
|
Biomass size, mm
|
Biomass moisture, %
|
Dimensions, mm
|
| 60 | 500 – 750 | 22 | < 7 | < 14 | 1,600 x 600 x 1,150 |
| 90 | 1,000 – 1,750 | 48 | < 20 | < 14 | 2,000 x 750 x 1,400 |
a ) Capacity depends on compacted biomass bulk density
Contact us to find out more and request a quotation for a grinding, drying, and briquetting plant or complete briquette line.
